Bench Source Cartridge Case Annealing Machine 110 V

Out of stock
Item Number

Please call us (208) 263-6953 if you would like to place this item on back order.

Has many new features not found on competitors models.

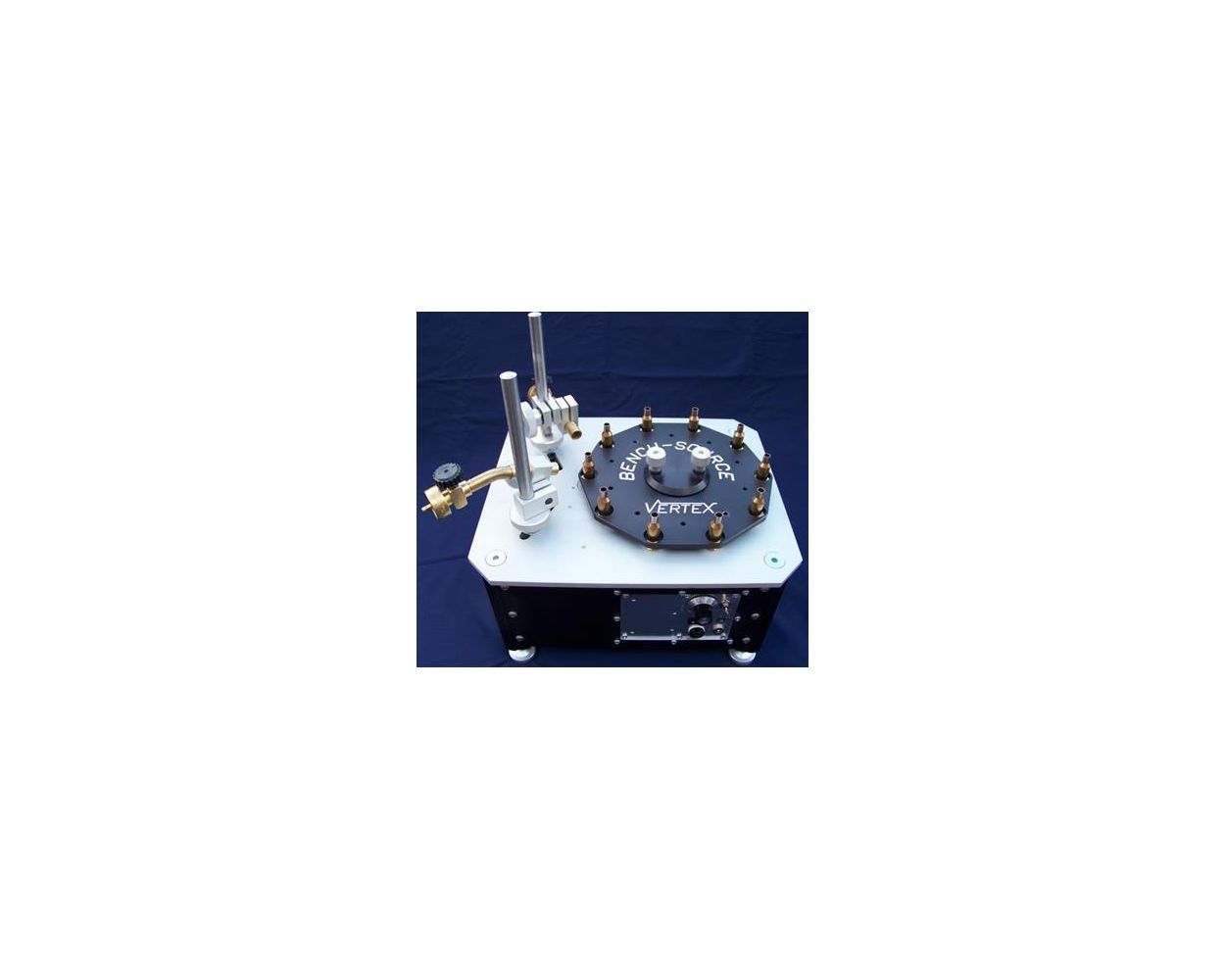

Bench Source brass case annealing machine.

1)You may use one or two heat sources. Does not come with propane nozzles. Not necessary to perfectly setup two nozzles because the cartridge case spins in a stationary spindle while heating.

2)Torch tips are adjustable in height, angle, distance and vertical tilt by two clamp knobs. (No Wing Nuts) Sets up in 2 minutes from 22 Hornet to the Largest Magnum Cases. (Can be supplied for .50 Caliber)

3)Time of heating is adjustable fom 1.5 to 10.0 seconds. Precise control is supplied by micro-processor unit and 10 bit analog/digital converter. Processor has both a 'Setup' (manual) control and 'Automatic Cycle'.

4)Table Top and Index Plate are made from aluminum and are fan cooled by a 50 Cubic Feet per Minute Fan Unit.. They will not heat up significantly during use! No plastic to bow or warp. Table acts as a heat sink to maintain hardness in the cartridge case head.

5)Index Plate is fixed and indexed by what is termed by mechanical types as a Geneva Drive. The wheel is always engaged and will not free wheel, possibly binding and over loading motors or having to make sure of the position of the wheel before operation.

6)Small foot print. Only 10" Wide x12" Long x 6" Tall. (Excluding Capstands) Weighs approximately 12 pounds. Great size for portability.

7)Supplied with a built in level and (4) adjustable legs. (Unit only needs to be moderately level). The Drive Wheel thickness is 1/4" eliminating cartridge tip over.

8)All aluminum is anodized either Black or Clear to prevent oxidation over time and has a very pleasing look. (Your friends will be impressed!)

9)Will process about 500-600 cartridges per hour. Average time is 4 seconds for heating and 2 seconds for indexing on most .308 and Magnum case sizes. (Can be progammed up to 10 seconds heating time for single torch use)

10)Lifetime manufacturers warranty on materials and workmanship. Does not cover normal wear tear. Electronics and Motors are limited to 2 years.

Click here to see video of the Bench Source Annealing Machine

Anneals cases up to 50-90, separate plate sold for larger calibers up to 50BMG.
